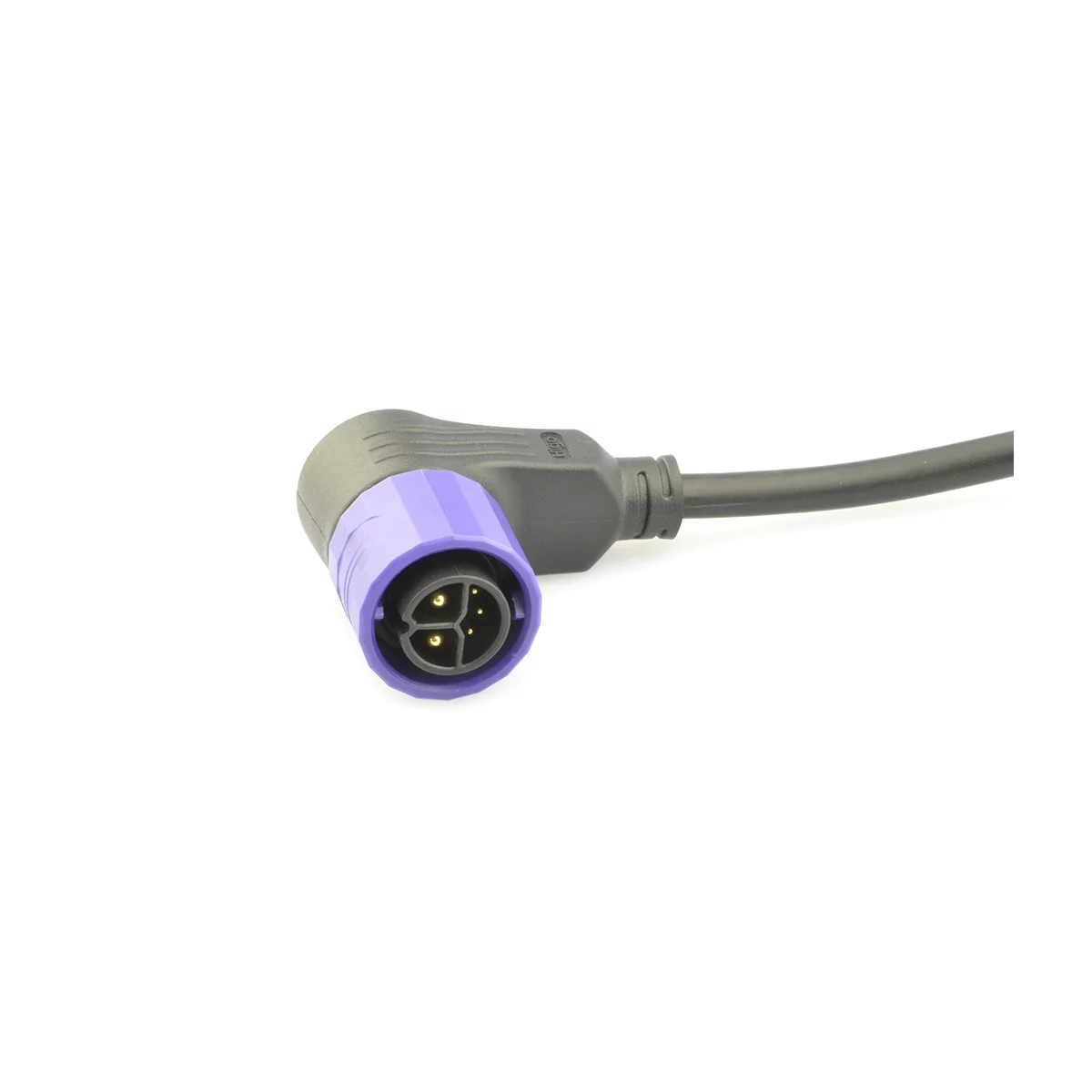

Male angled plug connector
Self-locking
S526AG A 00 B0 1000
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 5 (2+3) |
|---|---|
| Connector shape | Angled plug |
| Gender | Male |
| Color | Black/Purple |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 3000 Mating times |

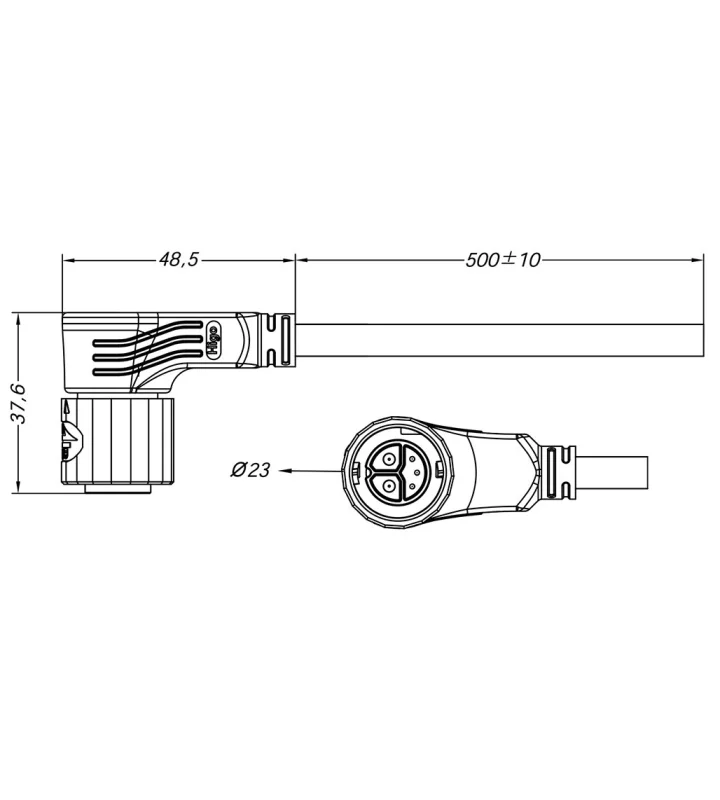

| Connector diameter | 23,4 mm |
| Fitting length | 40 mm |
| Cable Length | 1000 mm |
| Cable diameter | 6 mm |
| Wire section | 2 x 2,0 + 3 x 0,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 25 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Copper alloy |
| Contact plating | Gold plated |
