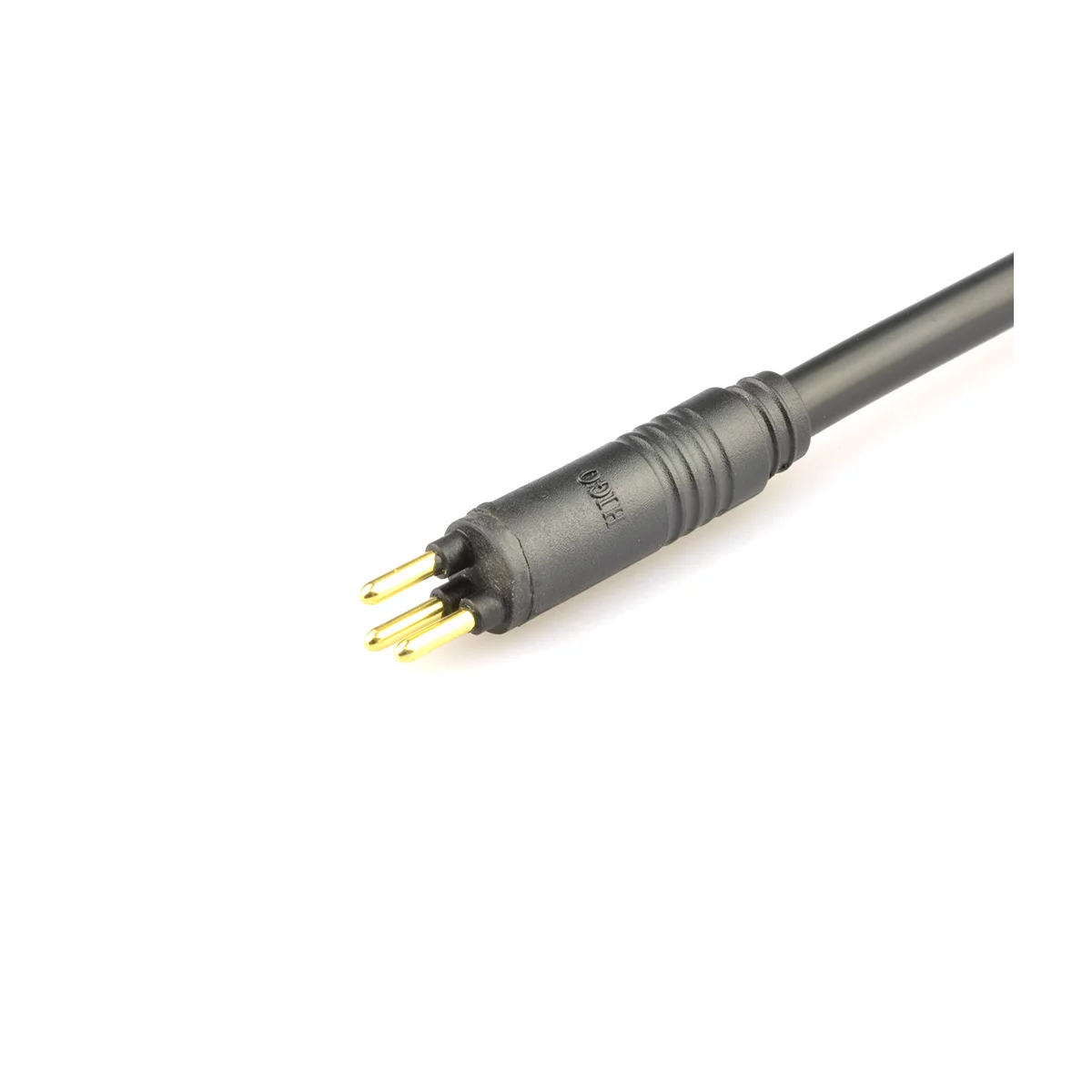

Male cable connector
Z310BG P 00 A9 1000
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 3 |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP66 |
| Mating cycles | 200 Mating times |
| Connector diameter | 10 / 13 mm |
| Fitting length | 75 mm |
| Cable Length | 1000 mm |
| Cable diameter | 5.8 mm |
| Wire section | 3 x 1,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 15 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
Varianten
| Artikelnummer | Wire section |
|---|---|
| Z310BG P 00 AA 1000 | 3 x 1,5 mm² |
| Z310BG P 00 AB 1000 | 3 x 2,0 mm² |
