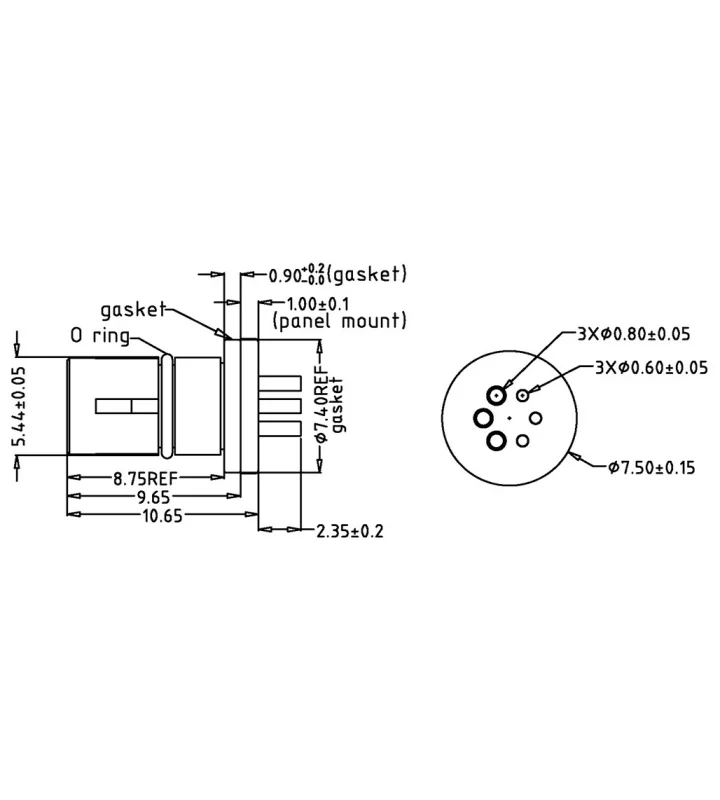

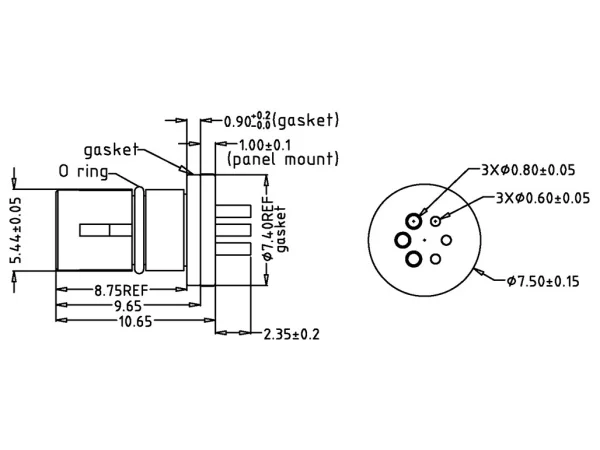

Micro Q female panel mount connector
Z606QM C 04 00 0000
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 6 |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 50 Mating times |
| Connector diameter | 6 mm |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material of contact | Copper Alloy |
|---|---|
| Contact plating | Gold over Nickel |
Varianten
| Artikelnummer | Color | Number of contacts | Material of contact |
|---|---|---|---|
| Z306QM C 04 00 0000 | Yellow | 3 | 3 Copper Alloy |
