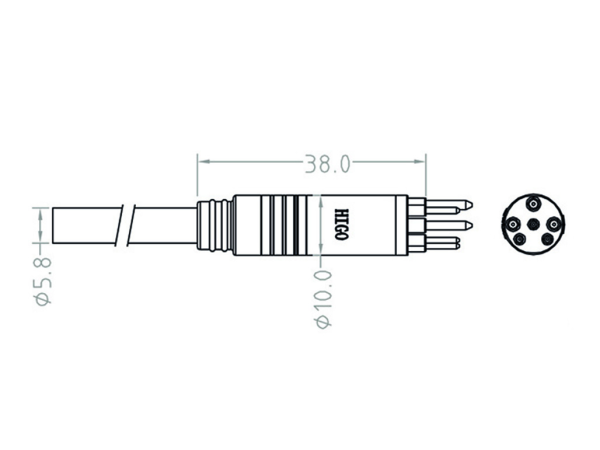

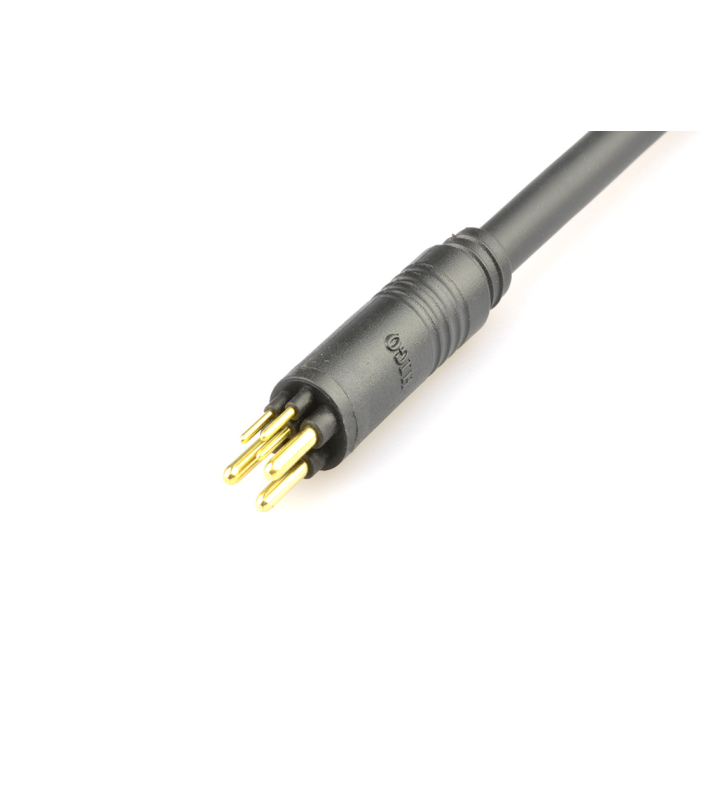

Male cable connector
Z610AG P 00 AD 1000
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 6 (3+3) |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP66 |
| Mating cycles | 200 Mating times |
| Connector diameter | 13 mm |
| Fitting length | 75 mm |
| Cable Length | 1000 mm |
| Cable diameter | 5.8 mm |
| Wire section | 3 x 1,5 + 3 x 0,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 15 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
Varianten
| Artikelnummer | Wire section |
|---|---|
| Z610AG P 00 AC 1000 | 3 x 1,2 + 3 x 0,2 mm² |
