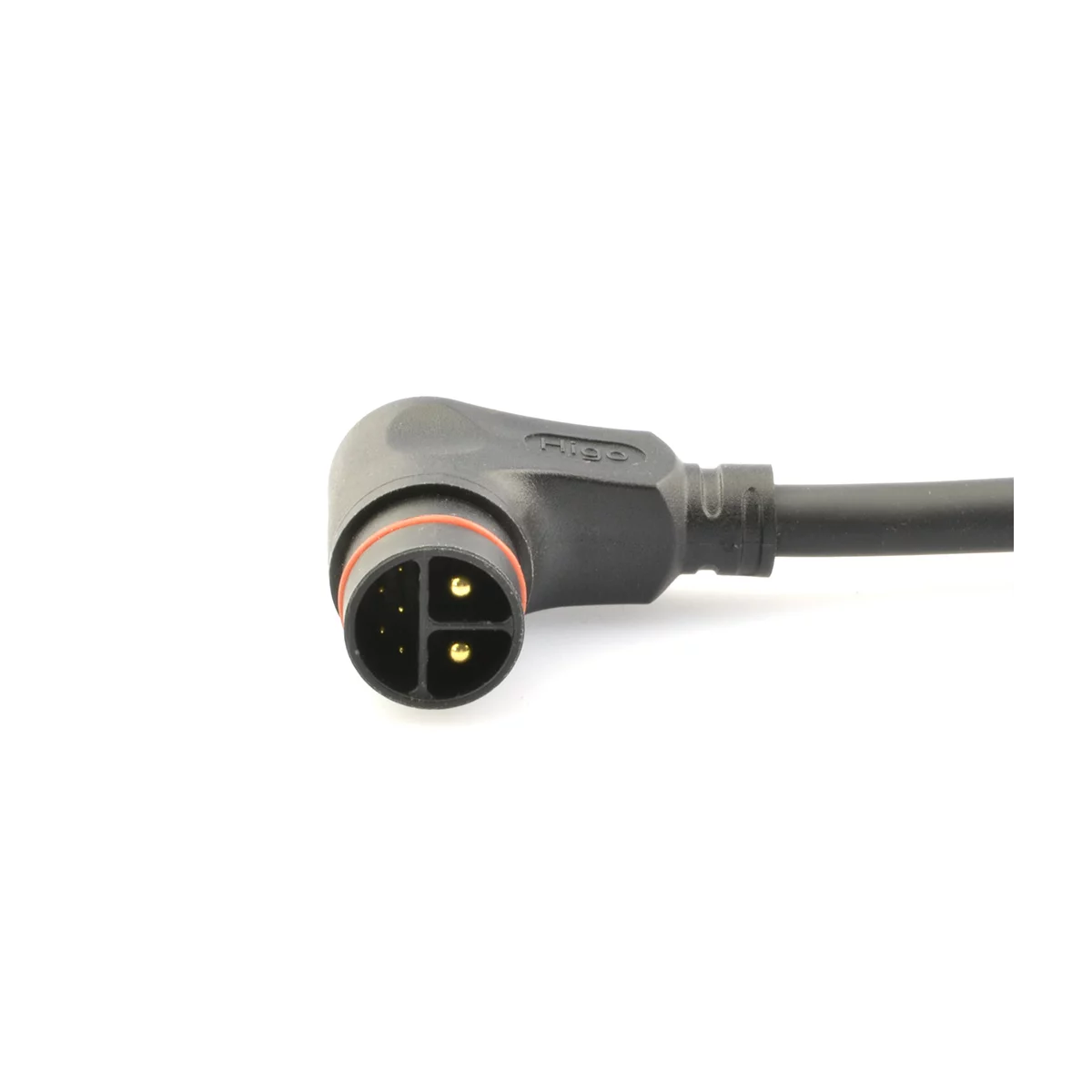

Male angled plug connector
Z718AG A 00 GG 1000
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 7 (2+5) |
|---|---|
| Connector shape | Angled plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 3000 Mating times |
| Connector diameter | 18 mm |
| Fitting length | 30 mm |
| Cable Length | 1000 mm |
| Cable diameter | 6.8 mm |
| Wire section | 2 x 2,5 + 5 x 0,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 25 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Brass |
| Contact plating | Gold |
