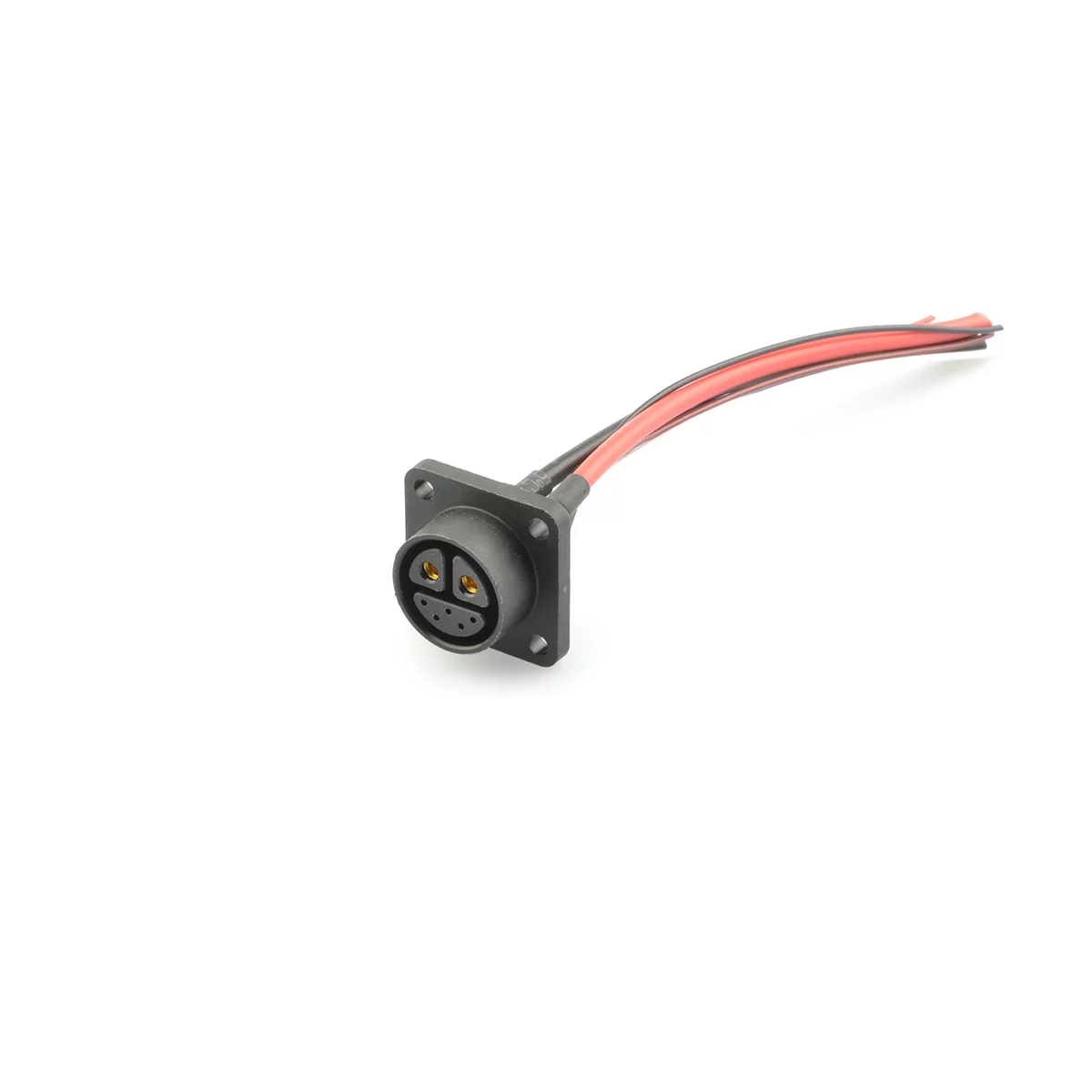

Female panel mount connector
Z718AM C 03 GH 0300
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 7 (2+5) |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 3000 Mating times |
| Connector diameter | 18 mm |
| Cable Length | 300 mm |
| Wire section | 2 x 2,5 + 5 x 0,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 25 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Insulation wire | Teflon |
|---|---|
| Material of contact | Brass |
| Contact plating | Gold |
